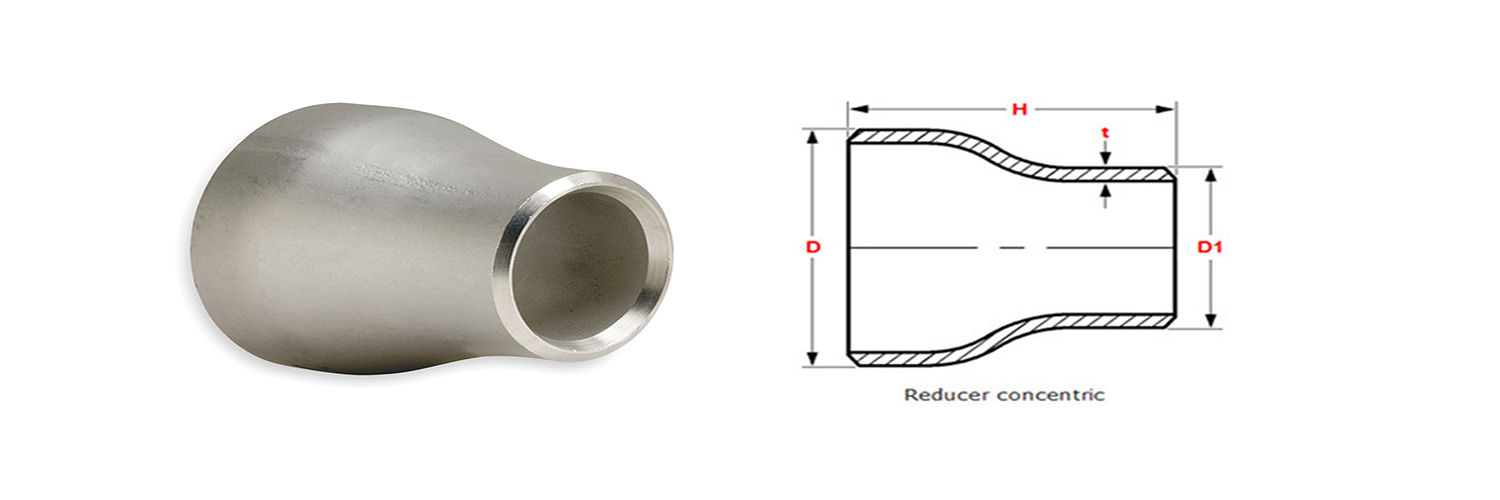

| DIMENSION FOR REDUCERS - ASME B16.9 : 2007 |
|||||||||||
| Nominl Pipe Size ( NPS ) |
Outside Dimeter of Bevel |
End to End (H) |
Nominl Pipe Size ( NPS ) |
Outside Dimeter of Bevel |
End to End (H) |
||||||
| Large End |
Small End |
Large End |
Small End |
||||||||
| 3/4" X 1/2" | 26.70 | 21.30 | 38.00 | 5" X 4" | 141.30 | 114.30 | 127.00 | ||||
| 3/4" X 3/8" | 26.70 | 17.30 | 38.00 | 5" X 3-1/2" | 141.30 | 101.60 | 127.00 | ||||
| 1" X 3/4" | 33.40 | 26.70 | 51.00 | 5" X 3" | 141.30 | 88.90 | 127.00 | ||||
| 1" X 1/2" | 33.40 | 21.30 | 51.00 | 5" X 2-1/2" | 141.30 | 73.00 | 127.00 | ||||
| 1-1/4" X 1" | 42.20 | 33.40 | 51.00 | 5" X 2" | 141.30 | 60.30 | 127.00 | ||||
| 1-1/4" X 3/4" | 42.20 | 26.70 | 51.00 | 6" X 5" | 168.30 | 141.30 | 140.00 | ||||
| 1-1/4" X 1/2" | 42.20 | 21.30 | 51.00 | 6" X 4" | 168.30 | 114.30 | 140.00 | ||||
| 1-1/2" X 1-1/4" | 48.30 | 42.20 | 64.00 | 6" X 3-1/2" | 168.30 | 101.60 | 140.00 | ||||
| 1-1/2" X 1" | 48.30 | 33.40 | 64.00 | 6" X 3" | 168.30 | 88.90 | 140.00 | ||||
| 1-1/2" X 3/4" | 48.30 | 26.70 | 64.00 | 6' X 2-1/2" | 168.30 | 73.00 | 140.00 | ||||
| 1-1/2" X 1/2" | 48.30 | 21.30 | 64.00 | 8" X 6" | 219.10 | 168.30 | 152.00 | ||||
| 2" X 1-1/2" | 60.30 | 48.30 | 76.00 | 8" X 5" | 219.10 | 141.30 | 152.00 | ||||
| 2" X 1-1/4" | 60.30 | 42.20 | 76.00 | 8" X 4" | 219.10 | 114.30 | 152.00 | ||||
| 2" X 1" | 60.30 | 33.40 | 76.00 | 8" X 3-1/2" | 219.10 | 101.60 | 152.00 | ||||
| 2" X 3/4" | 60.30 | 26.70 | 76.00 | 10" X 8" | 273.00 | 219.10 | 178.00 | ||||
| 2-1/2" X 2" | 73.00 | 60.30 | 89.00 | 10" X 6" | 273.00 | 168.30 | 178.00 | ||||
| 2-1/2" X 1-1/2" | 73.00 | 48.30 | 89.00 | 10" X 5" | 273.00 | 141.30 | 178.00 | ||||
| 2-1/2" X 1-1/4" | 73.00 | 42.20 | 89.00 | 10" X 4" | 273.00 | 114.30 | 178.00 | ||||
| 2-1/2" X 1" | 73.00 | 33.40 | 89.00 | 12" X 10" | 323.80 | 273.00 | 203.00 | ||||
| 3" X 2-1/2" | 88.90 | 73.00 | 89.00 | 12" X 8" | 323.80 | 219.10 | 203.00 | ||||
| 3" X 2" | 88.90 | 60.30 | 89.00 | 12" X 6" | 323.80 | 168.30 | 203.00 | ||||
| 3" X 1-1/2" | 88.90 | 48.30 | 89.00 | 12" X 5" | 323.80 | 141.30 | 203.00 | ||||
| 3" X 1-1/4" | 88.90 | 42.20 | 89.00 | 14" X 12" | 355.60 | 323.80 | 330.00 | ||||
| 3-1/2" X 3" | 101.60 | 88.90 | 102.00 | 14" X 10" | 355.60 | 273.00 | 330.00 | ||||
| 3-1/2" X 2-1/2" | 101.60 | 73.00 | 102.00 | 14" X 8" | 355.60 | 219.10 | 330.00 | ||||
| 3-1/2" X 2" | 101.60 | 60.30 | 102.00 | 14" X 6" | 355.60 | 168.30 | 330.00 | ||||
| 3-1/2" X 1-1/2" | 101.60 | 48.30 | 102.00 | 16" X 14" | 406.40 | 355.60 | 356.00 | ||||
| 3-1/2" X 1-1/4" | 101.60 | 42.20 | 102.00 | 16" X 12" | 406.40 | 323.80 | 356.00 | ||||
| 4" X 3-1/2" | 114.30 | 101.60 | 102.00 | 16" X 10" | 406.40 | 273.00 | 356.00 | ||||
| 4" X 3" | 114.30 | 88.90 | 102.00 | 16" X 8" | 406.40 | 219.10 | 356.00 | ||||
| 4" X 2-1/2" | 114.30 | 73.00 | 102.00 | 18" X 16" | 457.00 | 406.40 | 381.00 | ||||
| 4" X 2" | 114.30 | 60.30 | 102.00 | 18" X 14" | 457.00 | 355.60 | 381.00 | ||||
| 4" X 1-1/2" | 114.30 | 48.30 | 102.00 | 18" X 12" | 457.00 | 323.80 | 381.00 | ||||
| - | - | - | - | 18" X 10" | 457.00 | 273.00 | 381.00 | ||||
| Note | : All Dimension in millimeters | ||||||||||
| DIMENSION FOR REDUCERS - ASME B16.9 : 2007 |
|||||||||||
| Nominl Pipe Size ( NPS ) |
Outside Dimeter of Bevel |
End to End (H) |
Nominl Pipe Size ( NPS ) |
Outside Dimeter of Bevel |
End to End (H) |
||||||
| Large End |
Small End |
Large End |
Small End |
||||||||
| 20" X 18" | 508.00 | 457.00 | 508.00 | 36" X 34" | 914.00 | 864.00 | 610.00 | ||||
| 20" X 16" | 508.00 | 406.40 | 508.00 | 36" X 32" | 914.00 | 813.00 | 610.00 | ||||
| 20" X 14" | 508.00 | 355.60 | 508.00 | 36" X 30" | 914.00 | 762.00 | 610.00 | ||||
| 20" X 12" | 508.00 | 323.80 | 508.00 | 36" X 26" | 914.00 | 660.00 | 610.00 | ||||
| 22" X 20" | 559.00 | 508.00 | 508.00 | 36" X 24" | 914.00 | 610.00 | 610.00 | ||||
| 22" X 18" | 559.00 | 457.00 | 508.00 | 38" X 36" | 965.00 | 914.00 | 610.00 | ||||
| 22" X 16" | 559.00 | 406.40 | 508.00 | 38" X 34" | 965.00 | 864.00 | 610.00 | ||||
| 22" X 14" | 559.00 | 355.40 | 508.00 | 38" X 32" | 965.00 | 813.00 | 610.00 | ||||
| 24" X 22" | 610.00 | 559.00 | 508.00 | 38" X 30" | 965.00 | 762.00 | 610.00 | ||||
| 24" X 20" | 610.00 | 508.00 | 508.00 | 38" X 28" | 965.00 | 711.00 | 610.00 | ||||
| 24" X 18" | 610.00 | 457.00 | 508.00 | 38" X 26" | 965.00 | 660.00 | 610.00 | ||||
| 24" X 16" | 610.00 | 406.40 | 508.00 | 40" X 38" | 1016.00 | 965.00 | 610.00 | ||||
| 26" X 24" | 660.00 | 610.00 | 610.00 | 40" X 36" | 1016.00 | 914.00 | 610.00 | ||||
| 26" X 22" | 660.00 | 559.00 | 610.00 | 40" X 34" | 1016.00 | 864.00 | 610.00 | ||||
| 26" X 20" | 660.00 | 508.00 | 610.00 | 40" X 32" | 1016.00 | 813.00 | 610.00 | ||||
| 26" X 18" | 660.00 | 457.00 | 610.00 | 40" X 30" | 1016.00 | 762.00 | 610.00 | ||||
| 28" X 26" | 711.00 | 660.00 | 610.00 | 42" X 40" | 1067.00 | 1016.00 | 610.00 | ||||
| 28" X 24" | 711.00 | 610.00 | 610.00 | 42" X 38" | 1067.00 | 965.00 | 610.00 | ||||
| 28" X 20" | 711.00 | 508.00 | 610.00 | 42" X 36" | 1067.00 | 914.00 | 610.00 | ||||
| 28" X 18" | 711.00 | 457.00 | 610.00 | 42" X 34" | 1067.00 | 864.00 | 610.00 | ||||
| 30" X 28" | 762.00 | 711.00 | 610.00 | 42" X 32" | 1067.00 | 813.00 | 610.00 | ||||
| 30" X 26" | 762.00 | 660.00 | 610.00 | 42" X 30" | 1067.00 | 762.00 | 610.00 | ||||
| 30" X 24" | 762.00 | 610.00 | 610.00 | 44" X 42" | 1118.00 | 1067.00 | 610.00 | ||||
| 30" X 20" | 762.00 | 508.00 | 610.00 | 44" X 40" | 1118.00 | 1016.00 | 610.00 | ||||
| 32" X 30" | 813.00 | 762.00 | 610.00 | 44" X 38" | 1118.00 | 965.00 | 711.00 | ||||
| 32" X 28" | 813.00 | 711.00 | 610.00 | 44" X 36" | 1118.00 | 914.00 | 711.00 | ||||
| 32" X 26" | 813.00 | 660.00 | 610.00 | 46" X 44" | 1168.00 | 1118.00 | 711.00 | ||||
| 32" X 24" | 813.00 | 610.00 | 610.00 | 46" X 42" | 1168.00 | 1067.00 | 711.00 | ||||
| 34" X 32" | 864.00 | 813.00 | 610.00 | 46" X 40" | 1168.00 | 1016.00 | 711.00 | ||||
| 34" X 30" | 864.00 | 762.00 | 610.00 | 46" X 38" | 1168.00 | 965.00 | 711.00 | ||||
| 34" X 26" | 864.00 | 660.00 | 610.00 | 48" X 46" | 1219.00 | 1168.00 | 711.00 | ||||
| 34" X 24" | 864.00 | 610.00 | 610.00 | 48" X 44" | 1219.00 | 1118.00 | 711.00 | ||||
| - | - | - | - | 48" X 42" | 1219.00 | 1067.00 | 711.00 | ||||
| - | - | - | - | 48" X 40" | 1219.00 | 1016.00 | 711.00 | ||||
| Note | : All Dimension in millimeters | ||||||||||
