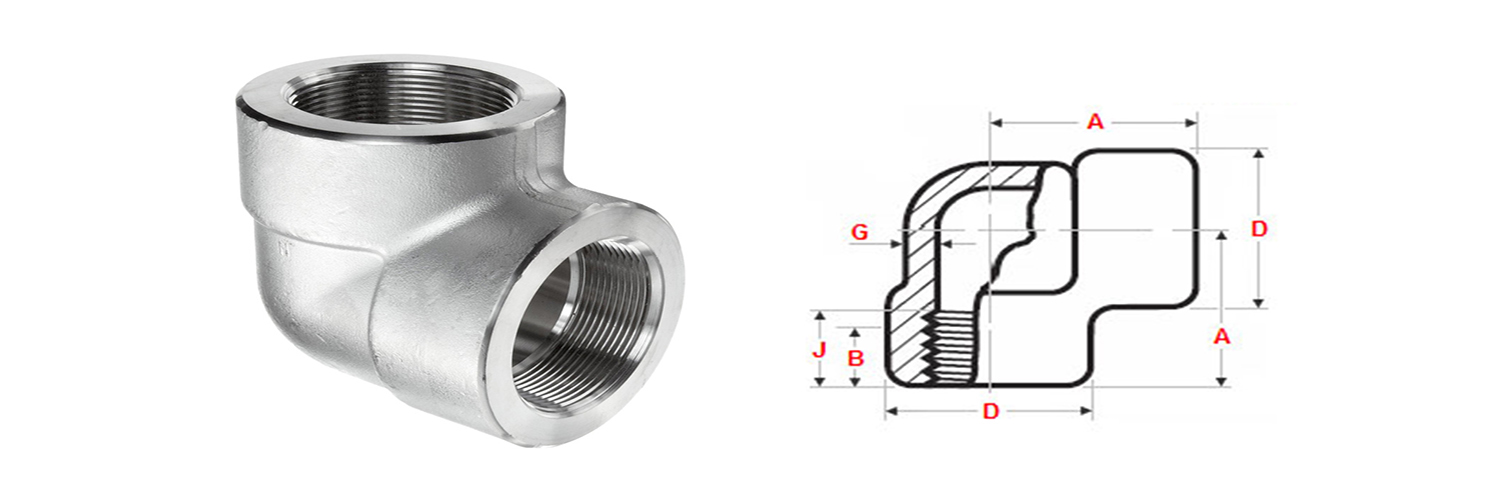

Forged Fittings - Elbow 90/45

Dimensions NPS 1/2 to 4 - Class 2000

NPS	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End
	B	J	D	G	90° A	45° C
1/2	10.9	13.6	33	3.18	28	22
3/4	12.7	13.9	38	3.18	33	25
1	14.7	17.3	46	3.68	38	28
1¼	17	18	56	3.89	44	33
1½	17.8	18.4	62	4.01	51	35
2	19	19.2	75	4.27	60	43
2½	23.6	28.9	92	5.61	76	52
3	25.9	30.5	109	5.99	86	64
4	27.7	33	146	6.55	106	79
NPS	B	J	D	G	90° A	45° C
	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End

Dimensions NPS 1/2 to 4 - Class 3000

NPS	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End
	B	J	D	G	90° A	45° C
1/2	10.9	13.6	38	4.09	33	25
3/4	12.7	13.9	46	4.32	38	28
1	14.7	17.3	56	4.98	44	33
1¼	17	18	62	5.28	51	35
1½	17.8	18.4	75	5.56	60	43
2	19	19.2	84	7.14	64	44
2½	23.6	28.9	102	7.65	83	52
3	25.9	30.5	121	8.84	95	64
4	27.7	33	152	11.18	114	79
NPS	B	J	D	G	90° A	45° C
	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End

Dimensions NPS 1/2 to 4 - Class 6000

NPS	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End
	B	J	D	G	90° A	45° C
1/2	10.9	13.6	46	8.15	38	28
3/4	12.7	13.9	56	8.53	44	33
1	14.7	17.3	62	9.93	51	35
1¼	17	18	75	10.59	60	43
1½	17.8	18.4	84	11.07	64	44
2	19	19.2	102	12.09	83	52
2½	23.6	28.9	121	15.29	95	64
3	25.9	30.5	146	16.64	106	79
4	27.7	33	152	18.67	114	79
NPS	B	J	D	G	90° A	45° C
	Min Length of Thread		Outside Dia of Band	Minimum WT	Center to End



General notes:

• Dimensions are in millimeters unless otherwise indicated.
• Dimension (B) is minimum length of perfect thread.
  The length of useful thread (B plus threads with fully formed roots and flat crests) shall not be less than J.
