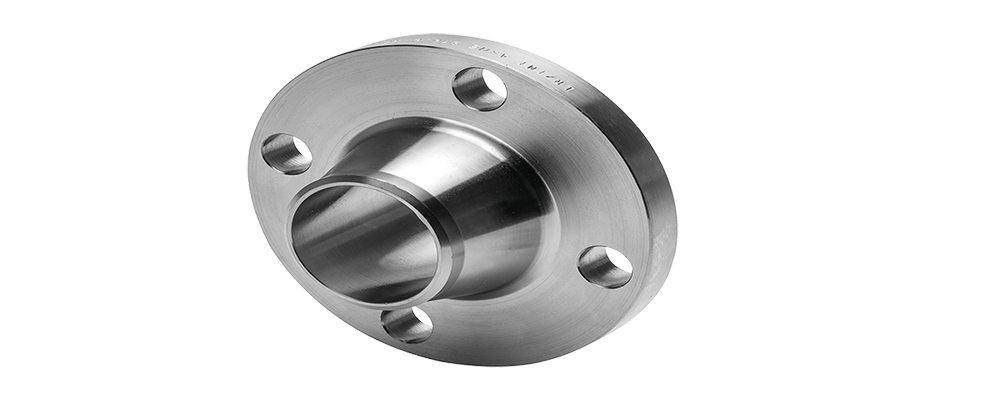

Ascent Engineering Company offers a level of Weld Neck Flanges. As the name decodes, it is called as a neck some bit of the rib which is being welded to the last motivations driving the including system. Weld Neck Flanges has an immense diminishing purpose for joining and are expectedly used for high weight applications. No doubt in the world, it is being proposed to move the weight inside the pipe, in a way to deal with oversee manage bounce the high weight obsession towards the base of the spine.
Weld Neck Flanges are for the most part especially known from various structures by their industrious pointed concentration and unassuming change of thickness in the butt weld a territory, by obliging them with the pipe.
RANGE :
½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
SIZE :
½” (15NB) to 60” (1500NB)
CLASS / PRESSURE :
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500# PN6, PN10, PN16, PN25, PN40, PN64
DIMENSION :
B16.5, BS4504, EN-1092, B16.36, B16.47, B16.48, MSS SP44
STD :
STD : ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges, API, JIS, NACE etc.
FEATURES :
Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable
Stainless Steel Weld Neck Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Weld Neck Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium Weld Neck Flanges :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium Weld Neck Flanges :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel Weld Neck Flanges :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel Weld Neck Flanges :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel Weld Neck Flanges :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy Weld Neck Flanges :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy Weld Neck Flanges :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 – UNS N02200 • Nickel 201 – UNS N02201 • Monel 400 – UNS N04400
• Monel K500 – UNS N05500 • Inconel K600 – UNS N06600 • Inconel 601 – UNS N06601
• Inconel 625 – UNS N06625 • Inconel 800 – UNS N08800 • Inconel 800H – UNS N08810
• Inconel 825 – UNS N08825 • Hastelloy C276 – UNS N10276 • Alloy 20 – UNS N08020
Test Certificate :
Manufacturer Test Certificate as per EN 10204 / 3.1
