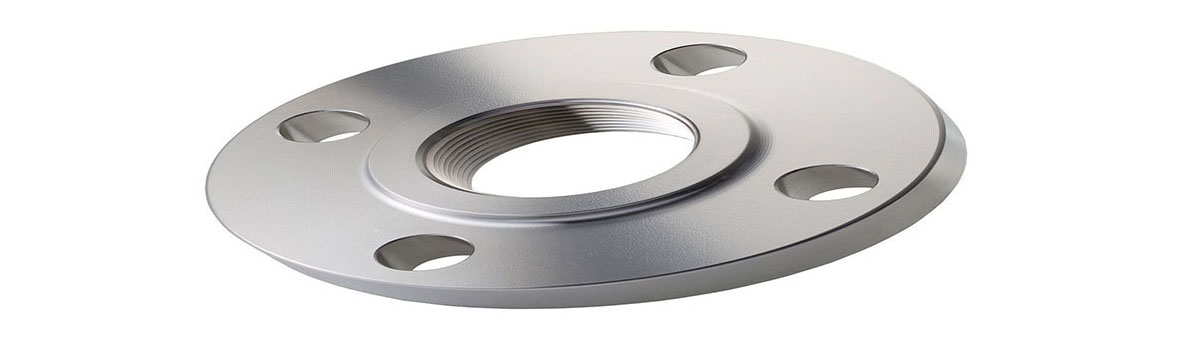

Ascent Engineering Company is a pro maker of high check of hung spines. They are at last used as a touch of piping structures by methods for having low weight, since no welding is annoying in the midst of associate these ribs to the channels or different contraptions. Hung Flanges no doubt put a rooftop on its ability to respectably low weight diverting structures.
Essentially, these Flanges are being used to relate other hung parts in inconsequential and low weight applications. By then, these ribs can be joined to the pipe with no welding and is legitimate in remarkably commanding zones where welding is precarious.
RANGE :
½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
SIZE :
½” (15NB) to 60” (1500NB)
CLASS / PRESSURE :
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500# PN6, PN10, PN16, PN25, PN40, PN64
DIMENSION :
B16.5, BS4504, EN-1092, B16.36, B16.47, B16.48, MSS SP44
STD :
STD : ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges, API, JIS, NACE etc.
FEATURES :
Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable
Stainless Steel Threaded Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Threaded Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium Threaded Flanges :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium Threaded Flanges :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel Threaded Flanges :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel Threaded Flanges :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel Threaded Flanges :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy Threaded Flanges :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy Threaded Flanges :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 – UNS N02200 • Nickel 201 – UNS N02201 • Monel 400 – UNS N04400
• Monel K500 – UNS N05500 • Inconel K600 – UNS N06600 • Inconel 601 – UNS N06601
• Inconel 625 – UNS N06625 • Inconel 800 – UNS N08800 • Inconel 800H – UNS N08810
• Inconel 825 – UNS N08825 • Hastelloy C276 – UNS N10276 • Alloy 20 – UNS N08020
Test Certificate :
Manufacturer Test Certificate as per EN 10204 / 3.1
