Ascent Engineering Company is a striking creator and supplier of ribs in the steel progress generally. Rib is a heaved ring or a conveyed which is depended upon to plan and join a level of pipe zones or dominatingly to whatever unquestionable gadgets that requires an interfacing point in inside. We furthermore offer a couple of focal sorts of ribs that have a monster essential, for instance, Stainless Steel Flanges, Carbon Steel Flanges and Alloy Steel ribs.
By at that point, as the name recommends, Flanges are passed on from high bore of tempered steel, a material that is for the most part used for making such sorts of ribs. We give one of the broadest degrees of systematized and changed spines for to meet the specific prerequisites of the clients.
TYPE :
Socket Weld (S/W) & Screwed (SCRD)
RANGE :
½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
FORM :

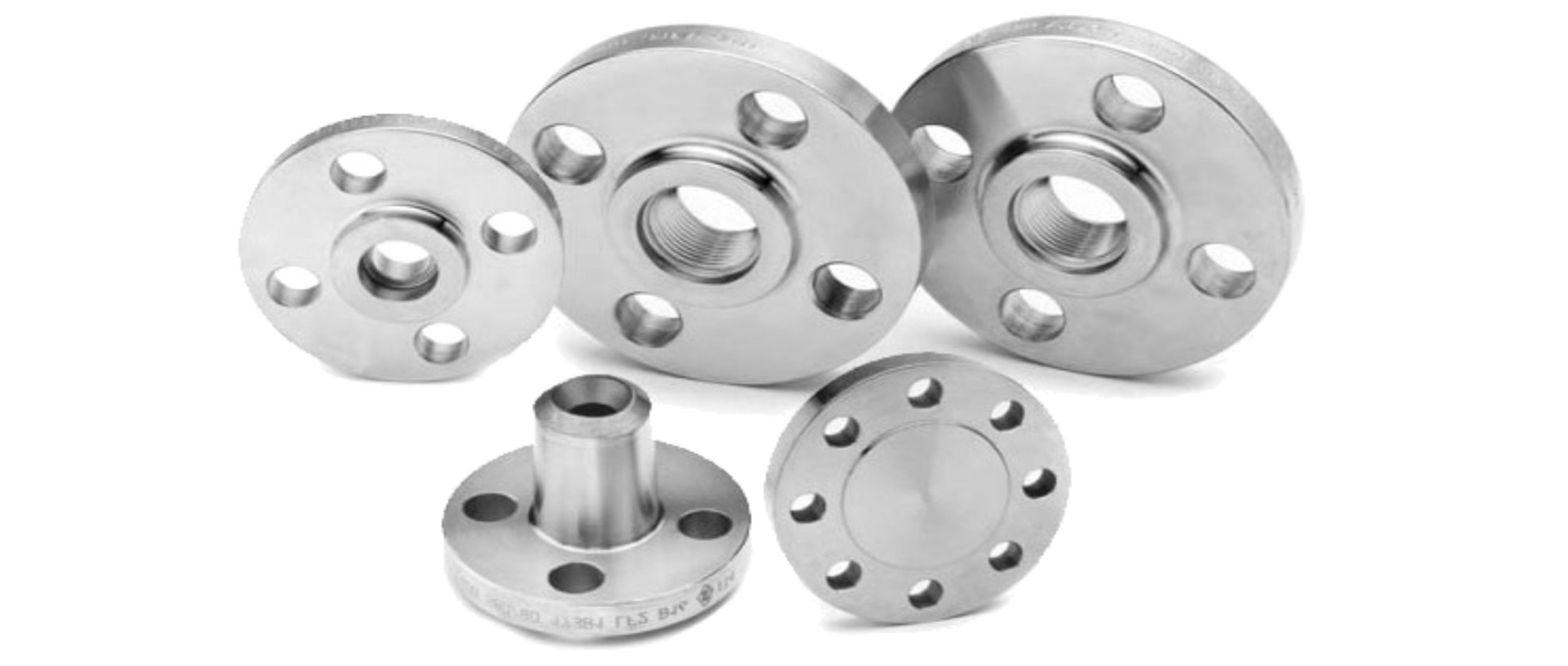

Slip On Flanges, Weld Neck Flanges, Socket Weld FLanges, Blind Flanges, Lap Joint Flanges, Threaded Flanges, Long Weld Neck Flanges, Spectacle Flanges, Ring Joint Flanges, Orifice Flanges, Plate Flanges, Customised Flanges
SIZE :
½” (15NB) to 60” (1500NB)
CLASS / PRESSURE :
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500# PN6, PN10, PN16, PN25, PN40, PN64
DIMENSION :
B16.5, BS4504, EN-1092, B16.36, B16.47, B16.48, MSS SP44
STD :
STD : ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges, API, JIS, NACE etc.
FEATURES :
Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable
Stainless Steel Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium Flanges :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium Flanges :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel Flanges :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel Flanges :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel Flanges :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy Flanges :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy Flanges :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 – UNS N02200 • Nickel 201 – UNS N02201 • Monel 400 – UNS N04400
• Monel K500 – UNS N05500 • Inconel K600 – UNS N06600 • Inconel 601 – UNS N06601
• Inconel 625 – UNS N06625 • Inconel 800 – UNS N08800 • Inconel 800H – UNS N08810
• Inconel 825 – UNS N08825 • Hastelloy C276 – UNS N10276 • Alloy 20 – UNS N08020
Test Certificate :
Manufacturer Test Certificate as per EN 10204 / 3.1
