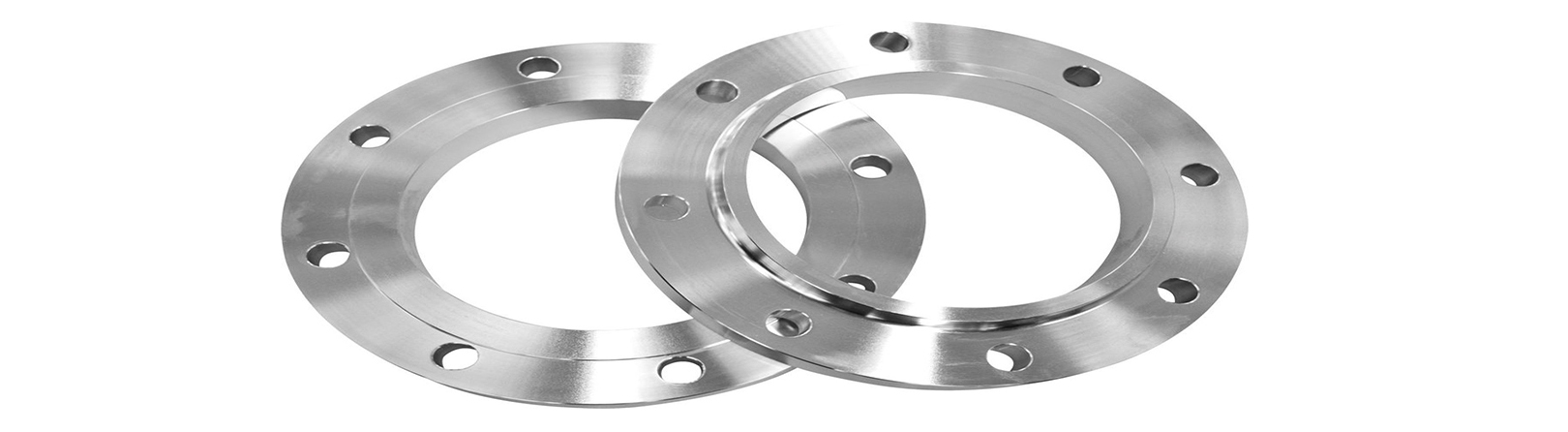

Ascent Engineering Company is specific in making high bore of Slip-on ribs. These sorts of ribs as a last resort slip over the pipe. Slip on pipe spines are everything seen as made by philosophies for inside width of the pipe rib which is higher than the external division crosswise over completed of the pipe in some measure. Everything considered, this empowers the Slip on spine to in fact slip over the pipe.
Slip-on pipe ribs are being associated, if all else fails towards both inside and outside, to give quality moreover to stop the spillage. Once in a while they in like way have a ring/chief or a state of joining, and can be made with a drag for to run wonderful with either pipe or tube.
RANGE :
½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
SIZE :
½” (15NB) to 60” (1500NB)
CLASS / PRESSURE :
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500# PN6, PN10, PN16, PN25, PN40, PN64
DIMENSION :
B16.5, BS4504, EN-1092, B16.36, B16.47, B16.48, MSS SP44
STD :
STD : ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges, API, JIS, NACE etc.
FEATURES :
Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable
Stainless Steel Slip on Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Slip on Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium Slip on Flanges :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium Slip on Flanges :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel Slip on Flanges :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel Slip on Flanges :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel Slip on Flanges :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy Slip on Flanges :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy Slip on Flanges :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 – UNS N02200 • Nickel 201 – UNS N02201 • Monel 400 – UNS N04400
• Monel K500 – UNS N05500 • Inconel K600 – UNS N06600 • Inconel 601 – UNS N06601
• Inconel 625 – UNS N06625 • Inconel 800 – UNS N08800 • Inconel 800H – UNS N08810
• Inconel 825 – UNS N08825 • Hastelloy C276 – UNS N10276 • Alloy 20 – UNS N08020
Test Certificate :
Manufacturer Test Certificate as per EN 10204 / 3.1
