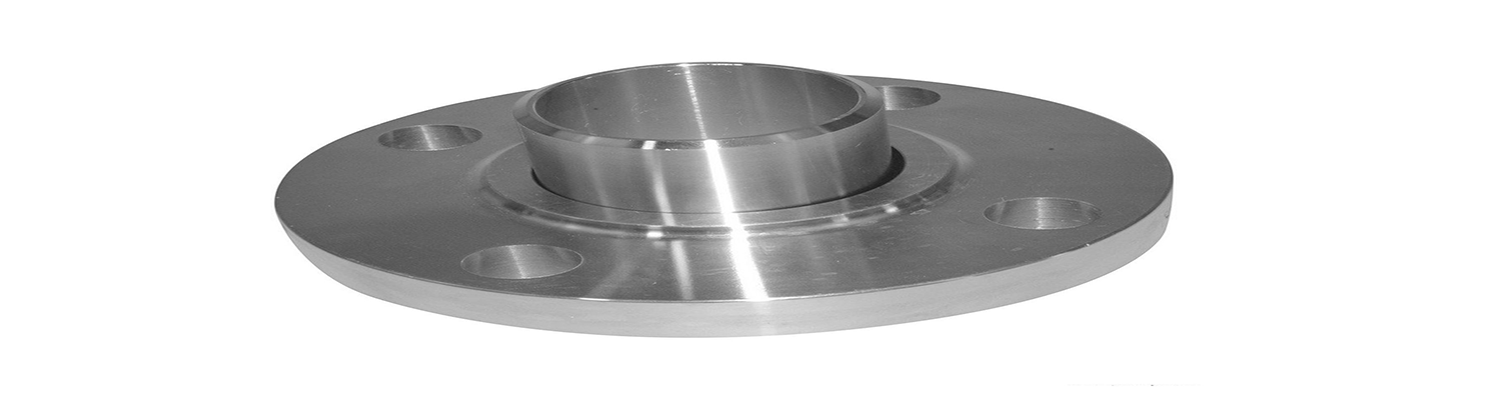

Ascent Engineering Company is a picked creator of high bore of present day lap joint spines in India. It is particularly like slip-on spine, where it is having a range at the intersection purpose of the drag and rib go up against that is for to impact a lap to stub end. In the meantime, the verbalization on the stub end plots out by methodologies for the gasket look on the rib.
Lap Joint spines are being utilized as a bit of employments where parts of the coordinating structures should reduce each other rapidly and suitably for examination and substitution. These lap joint ribs are being given in full-scale run and are thoroughly utilized at all the weights.
RANGE :
½” (15 NB) to 60” (1500NB) in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS ASA 150, ASA 300, PN 6,10,16,25, 40,64,100,160 ETC. available with NACE MR 01-75
SIZE :
½” (15NB) to 60” (1500NB)
CLASS / PRESSURE :
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500# PN6, PN10, PN16, PN25, PN40, PN64
DIMENSION :
B16.5, BS4504, EN-1092, B16.36, B16.47, B16.48, MSS SP44
STD :
STD : ANSI Flanges, ASME Flanges, DIN Flanges, EN Flanges, BS Flanges, API, JIS, NACE etc.
FEATURES :
Dimensional accuracy, Corrosion resistance, High efficiency, Excellent finish, Durable
Stainless Steel Lap Joint Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel Lap Joint Flanges :
Standard : ASTM / ASME A/SA 182
Grade : F 44, F 45, F51, F 53, F 55, F 60, F 61
Aluminium Lap Joint Flanges :
Standard : ASTM B247, B361.
Grade : 2024, 6061, 6063, 6101, 7075.
Titanium Lap Joint Flanges :
Standard : ASTM B381.
Grade : Grade 1, Grade 2, Grade 4, Grade 5, Grade 6, Grade 7, Grade 9, Grade 19, Grade 23
Carbon Steel Lap Joint Flanges :
Standard : ASTM A 105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70
Low Temperature Carbon Steel Lap Joint Flanges :
Standard : ASTM A 350 LF2 / A350 LF3
Alloy Steel Lap Joint Flanges :
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91
Copper Alloy Lap Joint Flanges :
Standard : ASTM / ASME SB 61 / 62 / 151 / 152.
Grade : UNS NO. C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30) C 71640
Nickel Alloy Lap Joint Flanges :
Standard : ASTM / ASME SB 564 / 160 / 472
• Nickel 200 – UNS N02200 • Nickel 201 – UNS N02201 • Monel 400 – UNS N04400
• Monel K500 – UNS N05500 • Inconel K600 – UNS N06600 • Inconel 601 – UNS N06601
• Inconel 625 – UNS N06625 • Inconel 800 – UNS N08800 • Inconel 800H – UNS N08810
• Inconel 825 – UNS N08825 • Hastelloy C276 – UNS N10276 • Alloy 20 – UNS N08020
Test Certificate :
Manufacturer Test Certificate as per EN 10204 / 3.1
